What is DED (Directed Energy Deposition)?
DED in manufacturing stands for a 3D additive manufacturing process that uses a laser and metal feedstock to build components. The Wire Arc Additive Manufacturing (WAAM) technology is included under the umbrella of Directed Energy Deposition (DED) 3D printing. Direct Energy Deposition (DED) is a family of metal additive manufacturing processes, such as WAAM (Wire Arc Additive Manufacturing), in which material is fed and melted at the same time to build or repair components layer by layer. It relies on a focused energy source, typically a laser , electron beam, or ARC (known as DED-arc), to create a molten pool into which metal wire or powder is deposited. This approach differs from powder-bed systems because the feedstock is added precisely where needed as the melt occurs, enabling the creation of large structures, targeted repairs, and near-net-shape parts.
Among these different types of DED technologies , ARC DED (ARC Directed Energy Deposition) or DED-arc is rapidly emerging as one of the most versatile and impactful metal additive manufacturing technologies within the robotic WAAM (Wire Arc Additive Manufacturing) sector, enabling the creation, repair, and enhancement of high‑performance metal components across multiple industries. As demand grows for faster production, reduced material waste, and greater design flexibility, additive manufacturing ded, ARC DED, especially for Metal 3D printing, is becoming a strategic solution for manufacturers seeking to modernize their workflows.
The Direct Energy Deposition Additive Manufacturing (DED AM) process relies on a multi-axis arm equipped with a specialized nozzle to apply molten material onto a given surface, where it quickly hardens. It operates much like standard material extrusion but offers significantly more freedom since the nozzle is not confined to a rigid axis. The metal AM WAAM machine (such as MX3D M1 and MX systems) melts the incoming material with a powerful laser or electron beam, allowing for deposition from any conceivable angle. While the process can handle polymers and ceramics, it is most commonly employed to manufacture parts using metal wire or powder.
What is ARC DED (Directed Energy Deposition) technology, and how does it work?
In metal 3D printing, the Arc Directed Energy Deposit , also known as ARC DED or DED-arc, is a process that consists of a metal wire or powder being fed into a melt pool created by an electric arc. This technology, often referred to simply as Direct Energy Deposition (DED) , uses focused energy, typically an electric arc, to melt metal feedstock and build parts layer by layer, and MX3D applies the ARC DED technology to its proprietary MX and M1 Systems , controlled by the WAAM software MetalXL. The ARC DED (Directed Energy Deposition) ability to produce large, complex, and fully dense metal structures makes it a powerful alternative to traditional manufacturing methods and applicable to a lot of different industries, such as Energy , Maritime , Manufacturing, Defense, Automotive , Architecture & Construction , Art & Design , and many more.

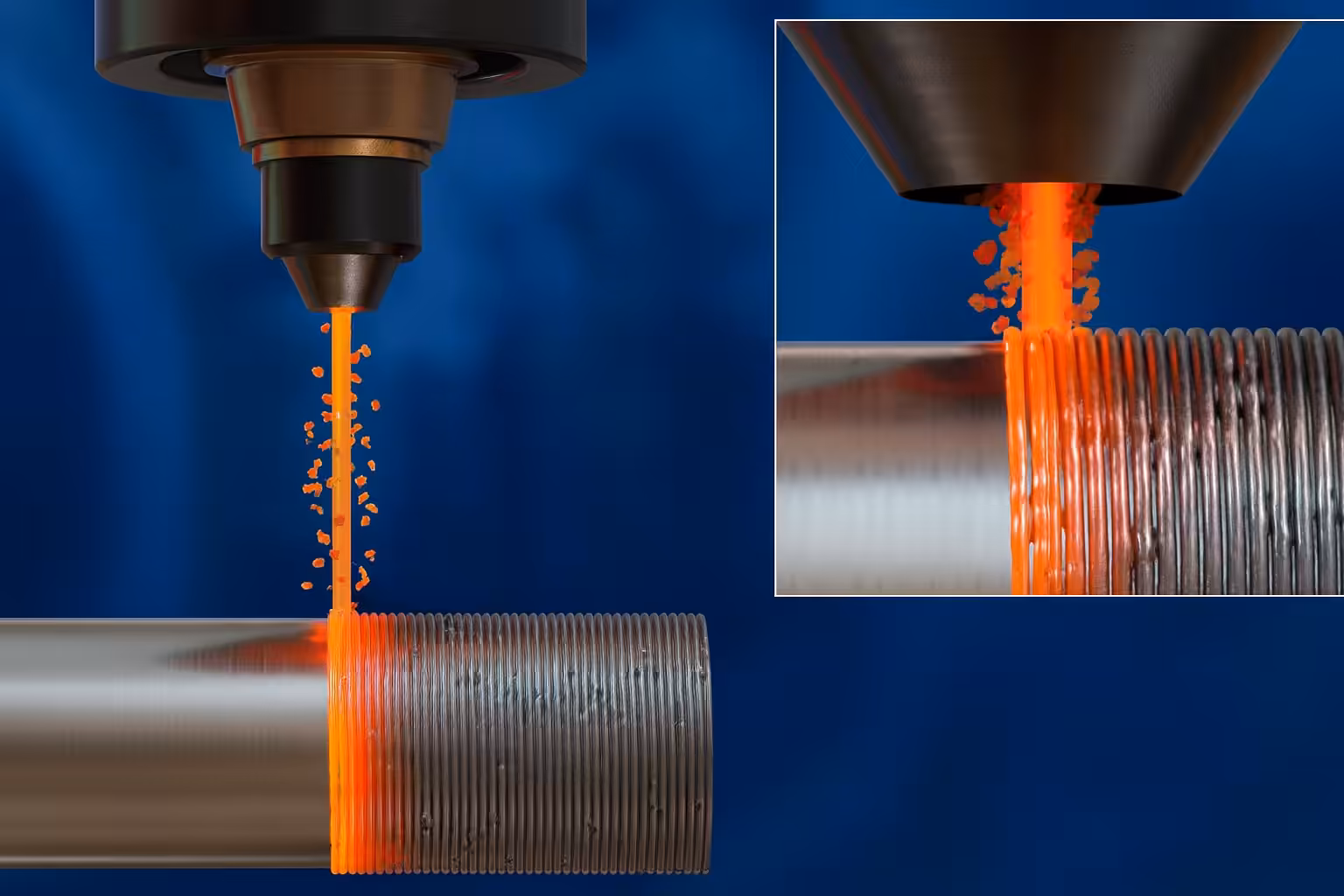

Directed Energy Deposition 3D printing (3D DED) is a metal additive manufacturing process where an energy source, usually an Electron Beam, Laser, or Arc (such as PAW, GTAW, TIG), is directed toward a plate or other substrate material where it impinges with wire or powder feedstock material and melts. As the material solidifies, it forms a metallurgically bonded layer. By repeating this process, ARC DED welding builds up a component with precise control over geometry, material distribution, and mechanical properties. Unlike powder‑bed systems, ARC DED is not limited by build volume, making it ideal for large‑scale metal 3D printing, and it is a cost-effective, high-deposition 3D printing process.
A typical direct energy deposition machine includes a robotic arm or multi-axis system, a wire feeder, a power source, and a shielding gas system. This setup allows for high deposition rates, excellent mechanical performance, and the ability to print or repair parts directly onto existing components. Many engineers rely on directed energy deposition diagrams to visualize the melt pool, deposition path, and thermal behavior, which are essential for optimizing part quality and structural integrity.
Applications of ARC DED in Modern Manufacturing
ARC DED is widely used in industries that require durable, high‑value metal components, including aerospace, energy, heavy machinery, maritime, and construction. Its ability to produce near-net-shape parts with minimal waste makes it especially valuable for large components that would be expensive or time-consuming to machine from solid blocks.
One of the most significant advantages of ARC DED is its capability for component repair and remanufacturing . Worn or damaged parts can be rebuilt by depositing new material only where needed, restoring functionality while reducing costs and downtime. This approach is particularly beneficial for turbine blades, hydraulic components, structural frames, and other mission-critical parts.
ARC DED also supports multi‑material manufacturing, enabling engineers to combine different alloys within a single component. This enables tailored performance characteristics, such as enhanced wear resistance, corrosion protection, or improved thermal stability.
Directed Energy Deposition types: Arc DED vs Laser DED vs Electron Beam DED
Directed Energy Deposition technologies differ mainly in the type of energy source used, laser, arc, or electron beam, and each approach shapes how the material is melted, deposited, and ultimately how the part performs.
Laser DED offers high precision and fine resolution, making it suitable for smaller geometries and localized repairs, though typically at higher cost and lower deposition rates. Electron Beam DED operates in a vacuum and delivers extremely high energy density, enabling deep penetration and rapid melting, but requires specialized environments and is less flexible for large, open-air applications.
Arc DED , by contrast, uses an electric arc to melt wire feedstock and stands out for its robustness, high deposition rates, and ability to build large‑scale metal components efficiently. This is the domain in which we at MX3D excel : our Arc DED approach combines industrial welding processes with advanced robotic control, enabling the production of strong, full-scale metal parts with unmatched geometric freedom and material efficiency.
What is the difference between PBF and DED?
The primary difference between Powder Bed Fusion (PBF) and Directed Energy Deposition (DED) lies in how the material is delivered and where the melting occurs. While both are additive manufacturing processes, they serve very different industrial purposes.
Material Delivery and Melting
Powder Bed Fusion (PBF): The machine spreads a thin, even layer of metal powder over a build plate (the “bed”). A heat source (laser or electron beam) then melts specific areas of that layer. Once a layer is finished, the plate drops, a new layer of powder is spread, and the process repeats.
Directed Energy Deposition (DED): The material (either metal powder or wire) is pushed through a nozzle directly into the path of a heat source (laser, arc, or electron beam). The material is melted at the moment of deposition, similar to a high-tech glue gun or a welding robot.
Scale and Complexity
PBF excels at high complexity and high resolution. It is the go-to for small, intricate parts with internal cooling channels or complex lattices (e.g., dental implants or aerospace brackets). However, it is limited by the size of the “box” or bed.
DED excels at scale and speed. It is much faster at depositing material (high deposition rates) and is typically used for large-scale industrial components. Since it is often mounted on a robotic arm, the build size is not restricted by a chamber.
Comparison Table
| Feature | Powder Bed Fusion (PBF) | Directed Energy Deposition (DED) |
| Material Form | Fine powder only | Metal wire or powder |
| Precision | Very High (fine details) | Moderate (near-net-shape) |
| Build Speed | Relatively slow | Very fast |
| Part Size | Limited by the build chamber | Virtually unlimited (robotic) |
| Repair Capability | No (requires a flat bed) | Yes (can print on existing parts) |
Hybrid Capabilities and Repair
A unique advantage of DED is that it can be used for repairs. Because the nozzle moves freely in space, you can take a worn-out industrial part, mount it in the machine, and use DED to add new metal only to the damaged areas. PBF cannot do this because it requires a completely flat, fresh layer of powder to function.
Finally, use PBF if you need a small, incredibly complex part with a smooth finish. Use DED if you need to build a large structural component quickly or repair an existing one.
Benefits of ARC DED for Industrial Production
ARC DED (Directed Energy Deposition) offers several key advantages that make it a compelling choice for manufacturers:
- High deposition rates allow for the rapid production of large metal parts.
- Reduced material waste compared to subtractive machining.
- Lower production costs, especially for oversized or custom components.
- Design freedom enabling complex geometries and internal features.
- On-site or near-site manufacturing reduces logistics and lead times.
- Enhanced sustainability thanks to efficient material usage and lightweight design optimization.
- Repair and refurbishment capabilities extend the life of high-value components.
These benefits position ARC DED as a transformative technology for industries seeking to improve efficiency, reduce environmental impact, and accelerate innovation.
ARC DED in Additive Manufacturing Workflows
As part of the broader field of directed energy deposition, an additive manufacturing ARC DED integrates seamlessly into digital production environments. Engineers can generate toolpaths, simulate thermal behavior, and optimize deposition strategies using advanced software. Direct energy deposition additive manufacturing diagrams help visualize the process and ensure that each layer meets the required specifications.
The technology also supports hybrid manufacturing, where ARC DED (Direct Energy Deposition) is combined with CNC machining. This enables the creation of near-net-shape parts, which are then finished to tight tolerances, thereby achieving both efficiency and precision. MX3D is researching and developing this technology every day to ensure better and more efficient usage.
Comparing Directed Energy Deposition Technologies
Directed Energy Deposition encompasses several metal 3D printing technologies that melt material as it is being deposited. While the fundamental concept remains the same across all Directed Energy Deposition systems, the choice of heat source and feedstock drastically alters the production capabilities, costs, and applications.
To help engineering teams choose the right technology for their large-scale manufacturing needs, the table below compares the three primary Directed Energy Deposition processes: Wire Arc Additive Manufacturing (Arc DED), Laser-based DED, and Electron Beam-based DED.
| DED Process | Heat Source | Materials Used | Feedstock | Deposition Rate | Maximum Part Size | Equipment and Operating Cost |
| WAAM (Arc DED) | Electric Arc | Steels, titanium, nickel alloys | Metal Wire | High | Very Large (Open environment) | Low to Medium |
| Laser DED | Laser Beam | Metals, alloys (e.g., titanium) | Metal Powder or Wire | Medium | Medium to Large (Often enclosed) | High |
| Electron Beam DED | Electron Beam | Titanium alloys, high-temp alloys | Metal Wire | High | Large (Restricted by vacuum chamber) | Very High |
The table shows the various types of Directed Energy Deposition (DED) currently in existence.
See the power of large-scale metal AM in action by exploring our official applications page. We have curated a collection of our most recent projects, highlighting everything from functional industrial components to visually striking, iconic designs. Dive into the portfolio to understand how our DED technology is actively transforming the manufacturing landscape.
Do you want to know more about WAAM? Check out our Complete Guide to Wire Arc Additive Manufacturing →
Why ARC DED Is Shaping the Future of Metal 3D Printing
The growing adoption of direct energy deposition 3D printing and WAAM technology reflects a shift toward more flexible, sustainable, and cost‑effective manufacturing. ARC DED is a versatile metal 3D printing process that enables companies to produce direct energy deposition parts that meet demanding performance requirements while reducing lead times and material consumption. As industries continue to embrace digital manufacturing, ARC DED stands out as a robust, scalable, and future‑ready solution.
Find out more about Arc DED and WAAM: WAAM vs Casting & Forging | WAAM vs Laser 3D Printing | Is WAAM Cost-Effective?
Advantages of ARC DED
Cost and Time Efficient: Offers rapid material buildup (high deposition rates), making it a highly economical choice for manufacturing medium to massive components.
Tool-Free Design Freedom: Enables flexible engineering and produces parts very close to their final dimensions (near-net-shape) without the need for custom molds or complex tooling.
Component Restoration: Highly effective for repairing, salvaging, or upgrading valuable existing parts, such as heavy structural elements and turbine blades.
Reduced Scrap: Maximizes material efficiency, generating significantly less waste compared to traditional subtractive manufacturing (machining).
Unconstrained Scalability: Because the process is not confined to a traditional 3D printer’s enclosed build chamber, it can construct exceptionally large structures.
Key Industry Applications
Arc DED is a highly adaptable technology utilized across a variety of demanding sectors:
Aerospace & Defense: Restoring and repairing critical, high-stress metal hardware.
Automotive & Heavy Manufacturing: Constructing large-scale, load-bearing structural frameworks.
Energy & Maritime: Manufacturing heavy-duty components that must resist corrosion and withstand harsh environments.
Architecture, Construction, & Art: Fabricating intricate, large-scale, and highly customized metalwork.
Materials and Process Optimization
The Arc DED process typically utilizes robust metals like titanium, austenitic stainless steel, and specialized superalloys.
The physical characteristics of the final part, such as its mechanical strength, internal microstructure, and the likelihood of flaws (like porosity or residual stress), are heavily dictated by process variables. Operators must carefully tune parameters like wire feed rate, travel speed, arc characteristics, and electrical polarity.
To further enhance the structural integrity and overall quality of the printed components, manufacturers apply advanced refinement techniques, including:
Pulsing the welding arc for better heat management.
Controlling the cooling periods between printed layers (interpass cooling).
Applying heat treatments after the deposition is complete to relieve stress.
ARC DED stands out as a highly strategic and versatile manufacturing tool. By merging material efficiency, build speed, and precision, it provides an ideal modern solution for fabricating large, heavy-duty, and intricate metal parts.
Take a look at some video examples of what MX3D can craft with WAAM Arc-DED technology, additive manufacturing ded:
- MX3D Rocket Thruster
- MX3D Clamp
- MX3D Aluminum Boat
- MX3D Bridge
- MX3D Closed Impeller
- MX3D Reinforced Pressure Vessel
And many more on our MX3D Official YouTube channel.
Frequently Asked Questions about DED
To provide further clarity on how our technology fits into the broader additive manufacturing landscape, we have answered the most common questions engineers ask about Directed Energy Deposition (DED).
How does DED work?
At its simplest, Directed Energy Deposition (DED) is a metal 3D printing process that functions much like a high-tech, robotic version of a “glue gun” for metal. Instead of laying down a bed of powder first, the machine melts the material exactly where it is being deposited.
Here is the step-by-step breakdown of how the process works:
The Feedstock Delivery
Material is fed through a specialized nozzle. Depending on the specific system, this feedstock is either:
Metal Wire: Often used in Arc DED (Wire Arc Additive Manufacturing), which is cost-effective and fast.
Metal Powder: Blown through the nozzle using a carrier gas, typically used in Laser DED for higher precision.
The Focused Heat Source
As the material exits the nozzle, a focused energy source strikes it immediately. This energy source creates a melt pool on the substrate (the base surface). The common heat sources are:
Laser: High precision, lower heat.
Electron Beam: High energy, requires a vacuum.
Electric Arc: Uses welding technology; very high deposition rates.
Layer-by-Layer Deposition
The nozzle is usually mounted on a multi-axis robotic arm or a CNC gantry. Guided by a digital CAD file, the robot moves along a predetermined path (the “toolpath”). As it moves, it continuously melts and deposits material, which solidifies almost instantly to form a bead of metal. By stacking these beads and layers, a fully dense 3D object is built.
Shielding and Environment
To prevent the molten metal from reacting with oxygen (which causes oxidation and weakens the part), an inert shielding gas (like Argon) is pumped through the nozzle to surround the melt pool. In the case of Electron Beam DED, the entire process must take place inside a vacuum chamber.
Near-Net-Shape Completion
Because DED is a high-speed process, the resulting part has a somewhat “ribbed” or rough surface finish. In industrial workflows, these are called near-net-shape parts. The part is then typically moved to a CNC milling machine for a final “subtractive” pass to achieve the exact dimensions and smooth surface required.
What is the difference between PBF and DED?
Powder Bed Fusion (PBF) builds parts by spreading thin layers of metal powder over a build plate and melting specific areas with a laser. It is ideal for small, highly intricate parts, but is limited by the size of the powder bed and is extremely slow. Directed Energy Deposition (DED) melts material precisely at the point of deposition using a robotic arm or gantry. This allows DED systems to print much faster, build significantly larger components, and even add new material to existing parts for repairs.
What is the difference between WAAM and DED?
Wire Arc Additive Manufacturing (WAAM) is not a competitor to DED; rather, it is a specific type of DED. While Directed Energy Deposition is the broad umbrella term for any process that melts material as it deposits it, WAAM specifically refers to DED processes that use an electric arc as the heat source and a metal wire as the feedstock. In industrial terms, WAAM is often referred to as Arc DED.
How does DED technology work?
Directed Energy Deposition technology works by pushing a feedstock material, either metal powder or metal wire, through a specialized nozzle mounted on a multi-axis robotic arm or CNC machine. As the material exits the nozzle, a focused heat source melts it instantly, creating a melt pool on the build surface. The robotic system moves along a programmed path, depositing the molten metal layer by layer to build a fully dense three-dimensional object directly from a digital CAD file.
Contact MX3D to know more about this technology and the various applications of arc DED (direct energy deposition).
Ready to explore WAAM and Arc DED technologies for Your Project?
Frequently Asked Questions about what Is Arc DED? Directed Energy Deposition (FAQ)
What materials can be used with Arc DED?
Arc DED is compatible with a wide range of commercially available welding wires. This includes common metals such as structural steel, stainless steel, aluminum, and bronze, as well as high-performance alloys like titanium and Inconel. Because it uses standard welding feedstock, material costs are typically much lower than the specialized powders required for other 3D printing methods.
Can Arc DED be used to repair existing parts?
Yes, one of the primary advantages of Arc DED is its ability to deposit material directly onto existing components. This makes it an ideal solution for remanufacturing worn industrial parts, such as shafts, turbines, or structural frames, saving companies significant time and money compared to replacing the entire component.
How does the surface finish of an Arc DED part compare to other methods?
Because Arc DED prioritizes high deposition rates and large-scale builds, the “as-printed” surface is generally coarser than Powder Bed Fusion (PBF) or Laser DED. However, these parts are typically printed as “near-net-shape,” meaning they are designed to be quickly finished with CNC machining on critical surfaces to achieve precise tolerances and a smooth final finish.
Is Arc DED suitable for structural, load-bearing applications?
Absolutely. Parts produced via Arc DED are fully dense and exhibit mechanical properties comparable to, and sometimes exceeding, traditional cast or forged components. By using advanced software like MetalXL to control thermal input and deposition paths, the metallurgical integrity of the part is maintained throughout the build.
What is the maximum size of a part that can be printed with Arc DED?
Unlike many metal 3D printing technologies that are restricted by the size of a vacuum chamber or powder bed, Arc DED is typically mounted on a robotic arm. This means the build volume is limited only by the reach of the robot or the length of the track it sits on. This flexibility allows for the creation of massive structures, ranging from several meters to even larger scale architectural or maritime components.
Why use DED?
Size: You can print parts that are meters long because you aren’t limited by a build box.
Repair: You can print onto existing metal parts to fix worn-out sections.
Speed: It is one of the fastest metal 3D printing methods available.
What is an example of DED?
The MX3D Smart Bridge (Architecture)
This is the world’s first 3D-printed stainless steel pedestrian bridge. Spanning 12 meters across a canal in Amsterdam, it was printed by four robotic arms that “welded” the structure in mid-air.
The Benefit: It demonstrated that DED can be used for large-scale, structural, and aesthetic infrastructure that would be nearly impossible to manufacture using traditional casting or assembly methods.
The Bronze Impeller (Energy)
MX3D printed a 350kg nickel-aluminum bronze impeller for ENGIE’s cooling system at a power plant.
The Benefit: Traditional casting for a part this size usually takes 6 to 8 months. Using Arc DED, the part was printed in just 9 days, reducing the total project lead time to roughly one month.
Certified WAAM Clamp (Oil & Gas)
Working with industry partners like Team Industrial Services, MX3D produced a certified 145kg structural pipe clamp used for pipeline leak repairs.
The Benefit: In the Oil & Gas industry, downtime is incredibly expensive. DED allows these critical, heavy-duty parts to be printed on demand rather than waiting months for a forged or cast replacement to be shipped from a central warehouse.
