Robotic 3D printing utilizes an industrial robotic arm, typically a 6-axis manipulator, as the motion platform for additive manufacturing. This approach differs significantly from the gantry or Cartesian systems found in conventional 3D printers. Utilizing an industrial arm fundamentally alters production capabilities by unlocking large-scale manufacturing for multi-meter parts, providing expansive reach with build envelopes that fit virtually any size, and enabling multi-axis motion for non-planar printing paths that gantries simply cannot replicate.
This guide explores the mechanics of robotic 3D metal printing, compares it to traditional gantry systems, details the wire arc additive manufacturing process, unpacks the critical software stack, and clarifies exactly when it makes economic sense to deploy this technology.
What Is Industrial Robotic Metal 3D Printing?
Robotic 3D printing is an additive manufacturing approach that uses a multi-axis industrial robotic arm to move a deposition tool, typically a welding torch, extruder, or laser head, through a programmed path. The most common metal application for this setup is wire arc additive manufacturing.
- A standard robotic metal 3D printer consists of several core components:
- A 6-axis robotic arm that serves as the primary motion platform.
- A deposition tool, which could be a welding torch for wire arc additive manufacturing, an extruder for polymers, or a laser head for Directed Energy Deposition.
- A positioner table that often acts as a seventh or eighth axis to rotate the part seamlessly during the build.
- Control software and a sensor stack that function as the digital brain, managing pathing and real-time monitoring.
The industry relies heavily on established robotics manufacturers, with systems commonly built using arms from KUKA and ABB. It is important to note that robotic 3D printing is not a single manufacturing process; rather, it is a highly versatile motion platform capable of hosting various additive technologies.
Robotic 3D Printing vs Gantry Systems
When evaluating large-format additive manufacturing, the choice between a robotic arm and a gantry system is a primary engineering decision. Here is how they compare across key factors:
| Factor | Robotic Arm | Gantry and Cartesian |
| Build envelope | Defined by robot reach and positioner; can be very large | Fixed, limited by frame |
| Axes | 6 or more, commonly 7 to 9 with a positioner | 3 to 5 |
| Path complexity | Multi planar, non planar, undercut | Mostly planar layers |
| Footprint versus build volume | Excellent ratio | Poor ratio for large parts |
| Cost per build envelope size | Lower for large parts | Lower for small precision |
| Surface finish as printed | Process dependent | Process dependent |
| Integration with process IO | Standard industrial robot IO, easy | Often custom |
| Best fit | Large structural parts, complex geometries | Small precision parts, batch production |
Robots dominate large-format metal additive manufacturing primarily due to economics. Constructing a 6-meter gantry system requires massive and expensive structural engineering. A 6-axis robot, however, can reach that same envelope at a fraction of the cost.
Furthermore, the multi-axis advantage allows robotic systems to print non-planar layers, deposit material directly onto curved or angled surfaces, and largely avoid the cumbersome support structures that gantry systems require.
The primary tradeoff is absolute precision. A robotic system sacrifices a degree of raw positional accuracy compared to a highly rigid and well-built gantry. However, for the majority of large metal additive manufacturing use cases, post-machining is already required to achieve final tolerances, rendering this limitation moot.
Wire Arc Additive Manufacturing (WAAM)
While robots can host many processes, they are most frequently paired with wire arc additive manufacturing for metal production.
This pairing is a natural fit because the underlying welding equipment was originally designed for robotic integration. This combination delivers high deposition rates ideally suited for large formats while utilizing inexpensive and standardized welding wire. Key capabilities of this robotic process include deposition rates of 2 to 8 kilograms per hour, the ability to build volumes exceeding 6 meters, and the seamless use of certified materials.
Other notable robotic processes worth mentioning include:
- Robotic LP DED, which utilizes a laser powder system on a robot.
- Robotic polymer extrusion is similar to large-format polymer printing.
- Robotic concrete 3D printing is widely used in the construction sector.
The Software Stack for Robotic 3D Printing
In modern robotic additive manufacturing, the software is the true bottleneck, not the hardware. Industrial robots are mature and robust machines; however, the toolpath planning, real-time monitoring, and certification support required for 3D printing are highly specialized.
A complete robotic software stack requires:
- CAM software for slicing, multi-planar and non-planar path planning, and running feasibility checks.
- Live process control for real-time sensor integration, managing dynamic interpass times, and triggering alerts.
- Visualization (VIZ) and analytics tools for creating a digital twin of the build, conducting post-print analysis, and generating data logs for certification.
MX3D MetalXL WAAM software serves as a prime example of a complete and hardware-agnostic stack. It utilizes a three-module approach consisting of CAM, LIVE, and VIZ, and operates seamlessly across major robot brands like KUKA and ABB.
What Can Be 3D Printed With a Robotic Arm?
Robotic 3D printing spans multiple heavy industries:
- Maritime applications include manufacturing propellers, rudder fittings, and thruster components.
- Energy applications involve producing valves, manifolds, impellers, and critical pressure components.
- Architecture and construction use cases focus on fabricating structural nodes, bridge elements, and custom facade pieces.
- Defense and aerospace sectors leverage the technology for creating structural brackets and on-demand replacement parts for legacy platforms.
- Tooling applications print heavy-duty forging dies, casting cores, and jigs or fixtures.
Choosing a Robotic 3D Printing System
When determining if a robotic system is the right fit, consider the following framework:
Choose a robotic system when:
- The part is larger than 500 millimeters.
- The material required is steel, stainless, duplex, Inconel, aluminum, or bronze.
- Lead time is critical, measured in days to weeks rather than months.
- Production volume is low to medium, typically 1 to 100 parts.
- The geometry includes overhangs, branches, or non-planar features.
Choose a different process when:
- The part is small, under 300 millimeters, and requires extremely high precision straight off the printer.
- The volume is very high, making traditional casting or forging much more economical.
- The material is highly reactive, which may require Electron Beam Melting in a vacuum chamber.
When evaluating a purchase, buyers must closely scrutinize the robot brand and reach, the specific power source, the need for positioners or external axes, cell safety requirements, the software stack, and the overall certification readiness of the system.
MX3D Robotic 3D Printing Systems

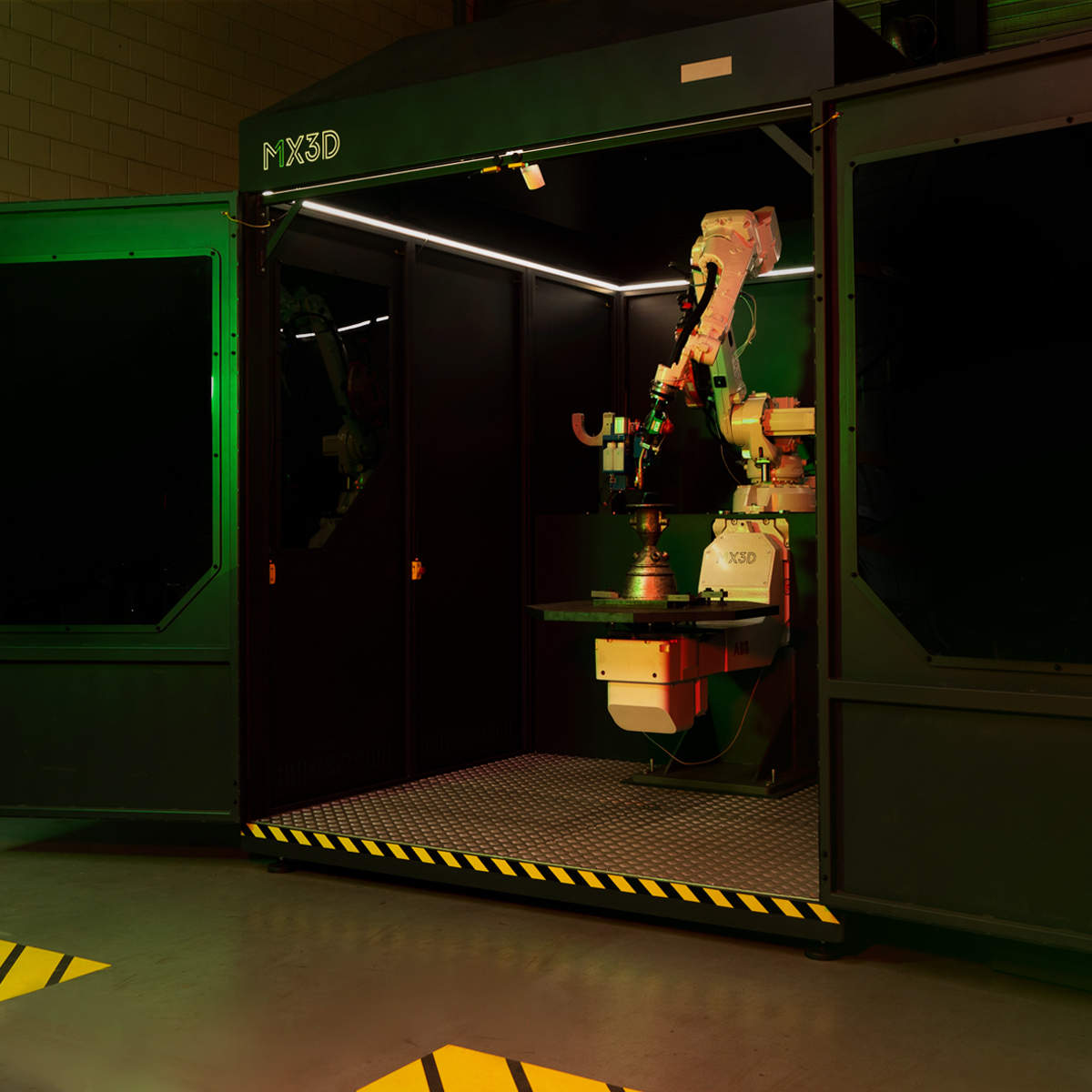

MX3D delivers the M1 and MX Metal AM systems, plug-and-play industrial robotic cells featuring a comprehensive and hardware-agnostic software suite known as MetalXL. This ensures customers integrating their own robots have access to robust process control. The system carries Lloyd’s Register Type Approval and is actively utilized by industry leaders such as Framatome, BMW, and TRIDIAM.
While both platforms utilize the MetalXL software suite to achieve high-quality Wire Arc Additive Manufacturing (WAAM), they are tailored for different production scales. The M1 system serves as a standardized, turnkey solution designed for medium-to-large complex parts, featuring a fixed build volume and optimized 8-axis robotics for rapid setup. Conversely, the MX system is an extended, heavy-duty platform built for extreme manufacturing; it offers a fully customizable build envelope, supports continuous 24/7 autonomous operation with multiple build plates, and is engineered to handle massive industrial payloads.
System Comparison: M1 vs. MX Metal AM Systems
| Feature | M1 Metal AM System | MX Metal AM System |
| Application Type | Complex medium-to-large parts | Heavy-duty large-scale parts |
| Build Volume | 2200 x 1400 x 1700 mm | Customizable (>2000 mm) |
| Production Scale | Up to 750 kg | 1,000 to 20,000 kg |
| Robotics | Medium to large flexible, 8-axis | Large-scale 24/7 industrial, extended high-payload |
| Software Integration | Fully integrated with MetalXL | Fully integrated with MetalXL |
When Robotic Metal 3D Printing Makes Economic Sense
Robotic metal 3D printing becomes most attractive when manufacturers need large, high-value metal parts in low to medium volumes and cannot justify the tooling cost or long lead times of casting or forging. In these cases, robotic wire arc additive manufacturing (WAAM) with an industrial robot can reduce time to part, improve material efficiency, and enable faster design iteration.
This is especially relevant for industries such as maritime, energy, aerospace, and heavy equipment, where components are often custom, oversized, or difficult to source quickly through traditional supply chains. For companies evaluating robotic 3D printing for metal parts, the economic advantage usually comes not from eliminating machining but from reducing wasted material, shortening procurement timelines, and simplifying production of complex geometries.
Compared with subtractive manufacturing from billet, robotic WAAM (Wire Arc Additive Manufacturing) can offer a better material utilization profile for large components with high buy-to-fly ratios. Compared with casting or forging, it can avoid tooling investment and reduce dependency on long external manufacturing cycles. The best-fit applications for robotic wire arc additive manufacturing are therefore parts that are too large, too customized, or too time-sensitive for conventional methods to be efficient.
Key Challenges in WAAM and Robotic 3D Printing
Although robotic 3D printing offers major advantages in build size, flexibility, and deposition rate, it also introduces process-control challenges that buyers should understand early. In robotic WAAM, final part quality depends heavily on variables such as heat input, wire feed speed, torch orientation, bead geometry, and interpass temperature. If these are not carefully controlled, the process can lead to distortion, residual stress, inconsistent layer formation, porosity, or lack-of-fusion defects.
For this reason, successful robotic metal additive manufacturing depends not only on the robot and welding equipment but also on the quality of the software, sensor integration, and monitoring strategy used during the build.
Post-processing is also a critical part of the workflow. Most 3D printed metal parts produced with robotic WAAM are near-net-shape components that still require machining, inspection, and in some cases heat treatment before final use. This does not reduce the value of the process; rather, it reflects how large-format metal additive manufacturing is deployed in real industrial settings.
If you want to find out more, check our full comparison of WAAM vs Forging Vs Casting
Qualification, Traceability, and Certification Readiness
For many industrial users, the real barrier to adoption is not whether a robotic system can deposit metal, but whether the resulting process can be documented, repeated, and qualified for critical applications. In sectors such as maritime, energy, defense, and infrastructure, certification readiness in robotic 3D printing depends on far more than machine specifications alone. Buyers need to evaluate process stability, build traceability, inspection workflows, and the availability of production data that supports qualification. A strong robotic additive manufacturing software stack plays an important role here by recording process parameters, supporting digital traceability, and generating the documentation needed for quality assurance and compliance.
This is where dedicated WAAM software becomes a strategic differentiator in industrial robotic 3D printing. Multi-axis path planning, live process monitoring, and post-build analytics are not just productivity tools; they are essential for repeatability and certification support.
FAQ
What is robotic 3D printing?
Robotic 3D printing uses a multi-axis industrial robotic arm to move a deposition tool, such as a welding torch or extruder, along a programmed path. It is a motion platform that enables large-scale additive manufacturing.
How does a robotic arm 3D printer work?
The system coordinates a 6-axis robotic arm with a deposition tool. Specialized software slices a 3D model, generates pathing instructions, and manages real-time sensors to deposit material layer by layer, often utilizing a positioner table to rotate the part during the build.
Why use a robotic arm instead of a gantry for 3D printing?
Robotic arms offer significantly larger build envelopes at a lower cost than large gantry systems. Furthermore, their comprehensive movement capabilities enable multiplanar and non-planar toolpaths, allowing for complex geometries without the need for extensive support structures.
What can be 3D printed with a robotic arm?
They are primarily used for large-scale structural metal parts. Common applications include maritime propellers, energy sector impellers and valves, architectural nodes, aerospace brackets, and heavy-duty industrial tooling.
What software is used to control a robotic 3D printer?
A complete stack requires CAM for path planning, Live software for real-time sensor control, and Visualization tools for post-print analytics. MX3D MetalXL is a leading hardware agnostic platform that manages this entire workflow across major robot brands.
