M-Metal
AM Systems

Flexible WAAM Manufacturing

Print a wide range of alloys and applications, from lightweight parts to large industrial components, all with one system for WAAM.

Full Process Control

Powered by MX3D’s MetalXL software, our systems give you unmatched control over the end-to-end manufacturing process.

Large-Scale Capability

Go beyond the limits of traditional manufacturing with 8-axis robotic systems that build multi-meter parts in a single process.

MX Metal AM System

The Heavy-Duty Custom Metal AM System​

M1 Metal AM System

Turnkey Advanced Metal AM System

MD Metal AM System

The Deployable WAAM System​

MB Metal AM System

The Essential Metal AM System

M1 Metal AM System

Turnkey Manufacturing

The M1 is the industry-standard system for advanced robotic 3D metal printing with Wire Arc Additive Manufacturing (WAAM). It enables industrial-level printing of medium- to large-scale parts. It is engineered for quick adoption, advanced control, and fast production, all with MX3D’s high-quality standards.

  • Start printing medium-to-large-scale metal parts fast
  • Cuts lead time, accelerates production, and reduces material waste
  • Advanced process control and high-resolution data logging
  • Optimized configuration with large build size
MX Metal AM System

Extreme Manufacturing

For larger, heavier fabrication (>2m >1t), the MX System offers a customizable robotic WAAM system for heavy-duty, large-scale industrial manufacturing. It is fully tailored to your requirements and can fabricate metal components up to 2+ meters with a 5+ tonne payload. It can produce multiple parts in various alloys with multi-robot, heavy-duty printing. Ideal for manufacturers producing parts at scale.

Multi-Part / Multi-Alloy / Heavy-Duty Printing

  • Print very large-scale metal parts
  • Multi-part, multi-alloy, and heavy-duty printing
  • Fully tailored to your requirements
  • High deposition with advanced process control
MX3D Metal AM MX System. Side shot.
MD Metal AM System

Deployable Manufacturing

The MD System is a deployable, turnkey WAAM micro-factory designed for remote locations. MX3D’s advanced WAAM system is housed in a standard ISO container, transportable by truck, train, and ship. It lets you bypass fragile supply chains and manufacture (and repair) metal components on-site.

  • Shippable WAAM factory in a standard 20ft or 10ft container.

  • Fully integrated system for automated, 24/7 fabrication.

  • Localized, on-demand production for true supply chain sovereignty.

  • Ruggedized setup engineered for remote field operations.

MB Metal AM System

Foundational Manufacturing

The MB System provides the core essentials of industrial WAAM, engineered for flexible integration into your manufacturing facility. Built on our proven M1, it offers an effective and flexible system to suit your facility.

  • Foundational WAAM setup with the essential hardware

  • Flexible print volumes to fit your facility requirements

  • Features the advanced MetalXL workflow and process control

Our systems

Which System is Right for You?

M1 System

Purpose
Complex medium-to-large parts manufacturing
Configuration
Best turnkey system
Strengths
Preferred WAAM system
Print Volume
Large for its class (2,200 x 1,400 x 1,700mm)
Print Weight
Up to 750 kg (1,600 lbs)
Robotics
Optimized 8-axis robotics
MX3D Metal AM MX System official logo.

MX System

Purpose
Heavy-duty large-scale parts manufactring
Configuration
Fully customized system to customer specs
Strengths
Largest WAAM system
Print Volume
Customizable (>2,000mm in each dimension)
Print Weight
From 1,000 to 20,000 kg (2,220 to 44,000 lbs)
Robotics
Expanded, high-payload robotics, incl. multi-robot

MD System

Purpose
Relocatable metal parts manufacturing
Configuration
Deployable ruggedized system
Strengths
Deployable WAAM system
Print Volume
Large within container box (2,100 x 1,400 x 1,600mm)
Print Weight
Up to 750 kg (1,600 lbs)
Robotics
Optimized 8-axis robotics

MB System

Purpose
Foundational metal parts printing
Configuration
WAAM essentials system
Strengths
Fundamental WAAM System
Print Volume
Large for its class (2,200 x 1,400 x 1,700mm)
Print Weight
Up to 750 kg (1,600 lbs)
Configuration
Optimized 8-axis robotics
MetalXL

Control system

MetalXL is MX3D’s proprietary software. Engineered as the “brain” of our M-Systems, MetalXL is the most comprehensive, high-quality, and easy-to-use WAAM workflow for robotic 3D metal printing.

METALXL CAM

MetalXL CAM is the dedicated interface for path planning, which includes an extensive printing strategy library for various metal alloys, feasibility check tools, and advanced slicing/solving.

METALXL LIVE

MetalXL Live is the print monitoring interface. It allows the user to simulate the print, control the process in real time and log the data thanks to the MetalXL control system.

METALXL VIZ

MetalXL Viz, for post-printing analytics. It displays a 3D report of the acquired data for extensive post-printing analytics, for defects detection, certification of the printed parts and strategy refinement.

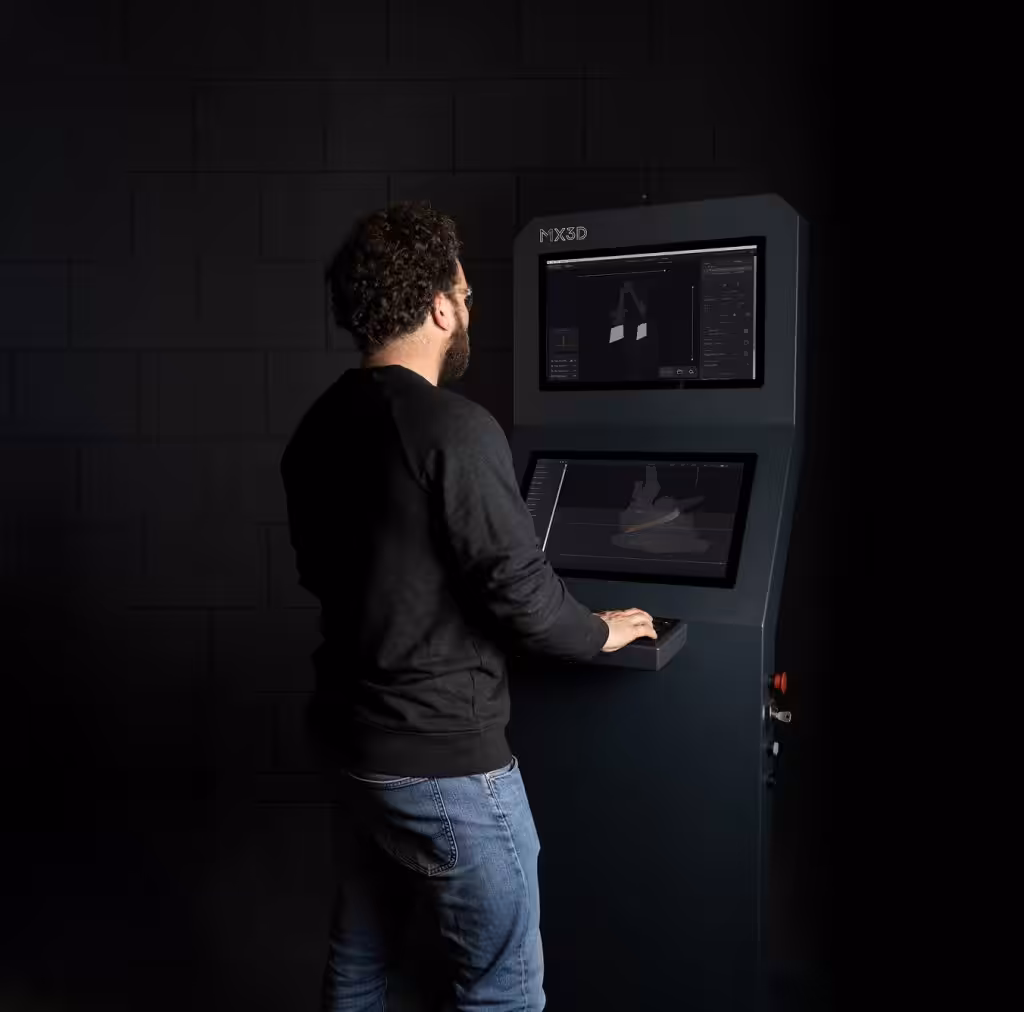

MX3D MetalXL software control systems for Metal AM Systems.
Why Choose MX3D?
Built for WAAM

Fully dedicated to high-quality robotic 3D metal printing

Proprietary MetalXL Software

Advanced control and real-time monitoring

Proven Industrial Experience

Trusted by leaders in energy, maritime, automotive, and aerospace

Sustainable Manufacturing

High productivity, shorter supply chains, lower footprint

DNV certificate logo white.
Talk to an Expert
Get a Quote

Accelerate your production capabilities, cut lead times, and open new possibilities in large-scale metal manufacturing.
