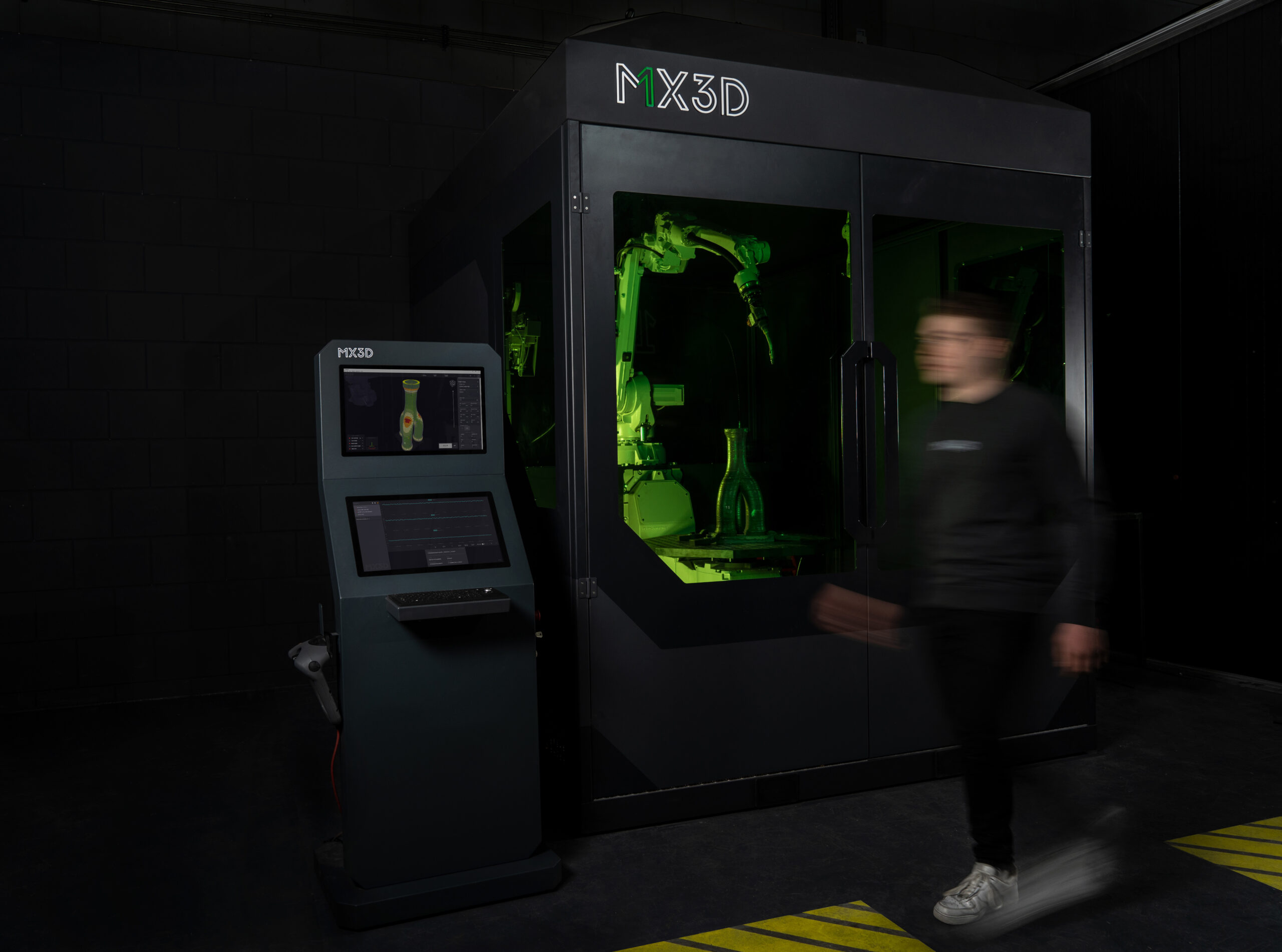

Large scale robotic wire arc additive manufacturing allows heavy industrial sectors to bypass the lengthy lead times and high tooling costs associated with traditional foundries specializing in massive forgings. By utilizing automated robotic motion to deposit metal wire layer by layer, manufacturers can construct massive custom geometries on demand. However, scaling additive manufacturing to multi meter dimensions introduces a major physical challenge, namely the management of intense thermal accumulation and residual structural stress.
When depositing hundreds of kilograms of molten metal over several days, the continuous input of intense thermal energy can cause severe volumetric distortion, warping, or layer delamination if left unmanaged. This comprehensive technical guide outlines the underlying physics of residual stress development, evaluates critical factors driving structural distortion, and establishes an engineering framework to maintain geometric accuracy in heavy metal prints. Furthermore, it demonstrates how integrated software suites eliminate these structural risks through intelligent toolpath planning and real time temperature monitoring.
The Physics of Residual Stress Development
To effectively control structural deformation, engineers must first understand the microstructural physics of thermal stress. During wire arc additive manufacturing, a highly localized electric arc melts incoming metal wire directly onto a substrate or previously deposited layer, creating a dynamic melt pool. This localized zone experiences rapid heating to temperatures well above the melting point of the specific alloy. Surrounding this molten pool is a significantly larger mass of colder, solid metal that acts as a stiff structural constraint.
As the robotic torch moves along its programmed path, the newly deposited track begins to cool and contract rapidly. This contraction is driven by the natural thermal expansion coefficient of the metal. However, because the cooling track is metallurgically bonded to the stiff, unyieldingly cold underlying metal, its natural contraction is physically restricted. This restriction places the newly deposited track under intense tensile stress, while the surrounding colder base metal experiences balancing compressive stress.
As subsequent layers are continuously stacked, these microscopic stresses do not disappear; instead, they compound across thousands of layers. Once the total accumulated internal tension exceeds the yield strength of the material or the constraint capacity of the base plate, the internal stress transforms into macroscopic geometric distortion. This causes the edges of the part to pull upward, twist, or warp completely out of the target tolerance window.
Primary Drivers of Thermal Distortion
Managing distortion requires controlling specific operational parameters that dictate heat input and cooling cycles during the active printing phase.
- Deposition Rate and Heat Input: High deposition systems operating between 2 to 15 kilograms per hour introduce immense thermal energy into the component. Higher electrical currents and voltages amplify the total heat input per unit length, widening the heat affected zone and increasing the total volume of contracting metal.
- Component Geometry and Architectural Symmetry: Long, straight, thin walled sections are highly vulnerable to longitudinal shrinkage, which induces a noticeable bowing effect. Conversely, enclosed hollow cylinders or geometrically balanced structures distribute thermal forces more evenly, making them naturally more resistant to uniform warping.
- Interpass Temperature and Cooling Windows: The interpass temperature is the specific temperature of the previously deposited metal track before the robotic torch initiates the subsequent layer. If the interpass temperature is allowed to climb too high due to insufficient cooling windows, the entire component retains excessive heat. This broadens the heat affected zone, lowers the mechanical yield strength of the underlying metal during the print, and dramatically increases the risk of catastrophic geometric collapse.
- Substrate Restraint and Base Plate Stiffness: The base plate serves as the initial physical anchor holding the print in place. A thin base plate will instantly buckle or bow upward under the tensile forces of the first few layers. Thick, rigid, heavily clamped substrate plates absorb the initial stress forces, forcing the printed metal to yield plastically rather than deforming the entire assembly.
Material Specific Thermal Dynamics
Alloys respond uniquely to thermal cycles based on their inherent physical properties, including thermal conductivity and thermal expansion. You can explore these characteristics further on our WAAM materials page.
| Material Category | Thermal Conductivity Rating | Thermal Expansion Coefficient | Global Distortion Risk | Primary Thermal Management Strategy |
| Carbon Steel | Moderate | Moderate | Moderate | Symmetrical path planning and controlled interpass cooling |
| Stainless Steel | Low | High | Very High | Extended cooling windows and structural backstep pathing |
| Super Duplex Stainless | Low | Moderate | High | Restrict maximum interpass temperature to protect microstructure |
| Aluminum Alloys | High | Very High | High | Heavy substrate clamping and active cooling systems |
| Titanium Alloys | Very Low | Low | Moderate | Tight atmospheric shielding and targeted preheating |
Materials with low thermal conductivity, such as stainless steel and super duplex stainless steel, present a severe challenge. Because the material cannot dissipate heat quickly away from the active melt pool, localized thermal accumulation spikes rapidly. When combined with a high thermal expansion coefficient, as seen in austenitic stainless steels, the resulting volume changes trigger immense residual stresses. Titanium alloys feature low thermal expansion, which naturally limits distortion, but their exceptionally low thermal conductivity requires precise monitoring to prevent localized heat building up to critical levels.
Engineering Mitigation Strategies
Controlling distortion requires a multi layered approach spanning from initial software path planning to physical post processing.
Symmetrical and Balanced Toolpaths
To prevent a part from warping in a single direction, path planning software must alternate the direction of deposition. If layer one is printed from left to right, layer two should be printed from right to left. For complex geometries, depositing material symmetrically across a central axis distributes the opposing tensile forces evenly, canceling out global warping.
Backstep and Skip Welding Sequences
When evaluating robotic pathing versus traditional casting and forging, these specialized advanced strategies involve breaking a continuous line into smaller segments. The robot prints a segment, skips forward, and prints the subsequent segment backward toward the completed zone. This breaks up continuous longitudinal shrinkage forces and lowers localized heat buildup.
Substrate Preheating and Active Interpass Cooling
Preheating the substrate plate reduces the sharp temperature differential between the molten pool and the base plate, mitigating the severe residual stress spikes in the initial layers. Active interpass cooling, using forced clean air or specialized cooling systems, accelerates heat dissipation to maintain the target interpass temperature without extending cycle times excessively.
Post Print Stress Relieving Heat Treatments
Once printing is complete, the component remains locked in its heavy substrate constraints. Before cutting the part free, the entire assembly must undergo a thermal stress relief cycle in a furnace. Heating the component to a specific stress relieving temperature, holding it for several hours, and cooling it slowly allows the locked internal atomic structures to relax, ensuring the part does not snap or distort when released from the base plate.
International Codes and Compliance
Regulated industries like energy and maritime demand strict validation of thermal management procedures. Standards such as DNV ST B203 and the ASME Boiler and Pressure Vessel Code Section IX specify that manufacturers must qualify their automated processes through clear procedure qualification records.
These codes mandate the continuous tracking and enforcement of maximum interpass temperatures. This is because thermal deviations can ruin mechanical properties, cause unwanted phase transformations, or introduce microcracking, violating safety compliance.
Leveraging MetalXL for Real Time Thermal Control
The sophisticated management of heat in large format wire arc printing requires an integrated software solution. MX3D addresses this necessity through the proprietary MetalXL software suite.
The MetalXL CAM module features advanced path planning algorithms that automatically incorporate alternating deposition directions, symmetrical balance, and optimized skip sequences to counteract distortion during the design phase.
During active production, the MetalXL Live module functions as the real time control center. By integrating advanced pyrometers or thermal sensors directly onto the robotic torch assembly, the software continuously reads the exact interpass temperature before initiating any new layer. If the local temperature exceeds the maximum limit specified by the engineering code, MetalXL Live autonomously pauses the robotic motion, letting the part cool safely before resuming deposition. This eliminates human error and guarantees metallurgical consistency.
Finally, the MetalXL Viz module compiles this rich sensor data to generate a complete digital twin of the thermal history. This provides absolute traceability, letting qualification teams verify that every coordinate of the multi meter print remained within compliant thermal boundaries throughout the entire multi day production cycle.
FAQ
What is residual stress in large scale metal 3D printing?
Residual stress is a system of internal tension and compression locked within the metal structure. It is caused by the rapid cooling and thermal contraction of newly deposited molten layers being physically restricted by the colder, stiffer underlying sections of the part.
Why do multi meter prints warp more than small parts?
As size increases, the total volume of contracting metal increases proportionally. Thermal contraction forces compound across longer distances and thousands of layers, generating massive global forces that can easily overpower the yield strength of the material or the constraints of the base plate.
How does interpass temperature affect structural distortion?
If the interpass temperature climbs too high, the part retains excessive heat, which broadens the heat affected zone and significantly lowers the mechanical strength of the underlying structure during the build. This makes the entire geometry highly vulnerable to warping or sagging under its own weight.
Can you eliminate residual stress during the printing process?
It cannot be eliminated during deposition due to the inherent thermal physics of welding. However, it can be minimized through balanced toolpaths and active cooling, and then completely relieved through post print thermal heat treatments in a furnace before the part is detached from its base plate.
How does software help control thermal deformation?
Advanced software like MetalXL CAM designs optimized paths to balance thermal forces, while MetalXL Live tracks thermal sensors in real time, autonomously pausing the industrial robot to enforce strict cooling windows and prevent dangerous heat accumulation.
