Wire arc additive manufacturing has completely transformed how heavy industries approach the production of large scale metal components. By utilizing industrial robotic arms and standard welding wire, manufacturers can fabricate massive parts for the energy, maritime, and aerospace sectors in a fraction of the time required by traditional forging or casting. However, this technology produces components in a near net shape state. To achieve the rigorous final tolerances and smooth surface finishes demanded by structural engineering codes, these printed parts must undergo subtractive CNC machining.
The critical bridge between the raw printed geometry and the final precision component is the machining allowance. This allowance is the specific volume of sacrificial material intentionally added to the digital design, serving as a buffer to guarantee that the final machined surface is perfectly clean, accurate, and completely free of raw weld waviness. Managing this allowance correctly is an essential skill for any manufacturing team. This guide details the physics of surface waviness, explores fixturing strategies for irregular prints, compares allowances across different materials, and explains how advanced software streamlines the transition from additive to subtractive manufacturing.
What Is a Machining Allowance and Why Is It Critical?
In the context of wire arc additive manufacturing, the machining allowance is the extra skin of metal deposited over the target final geometry. When the robotic arm finishes printing, the part is intentionally oversized. A CNC milling machine or lathe then removes this extra skin to reveal the precise final dimensions.
Calculating the perfect allowance is a delicate balancing act.
If the allowance is too thin, the cutting tool will not be able to reach the lowest valleys of the raw weld bead surface. This leaves visible, unmachined weld lines on the final product, which act as stress concentrators and ultimately lead to a scrapped part.
Conversely, if the allowance is too thick, the manufacturer wastes valuable raw material, excessive shielding gas, and crucial robotic printing time. Furthermore, removing an excessive amount of heavy metal during the post processing phase drastically increases CNC machine time and accelerates the wear on expensive cutting tools. Optimizing this extra material is the key to maximizing the economic benefits of large scale metal 3D printing.
The Physics of Surface Waviness

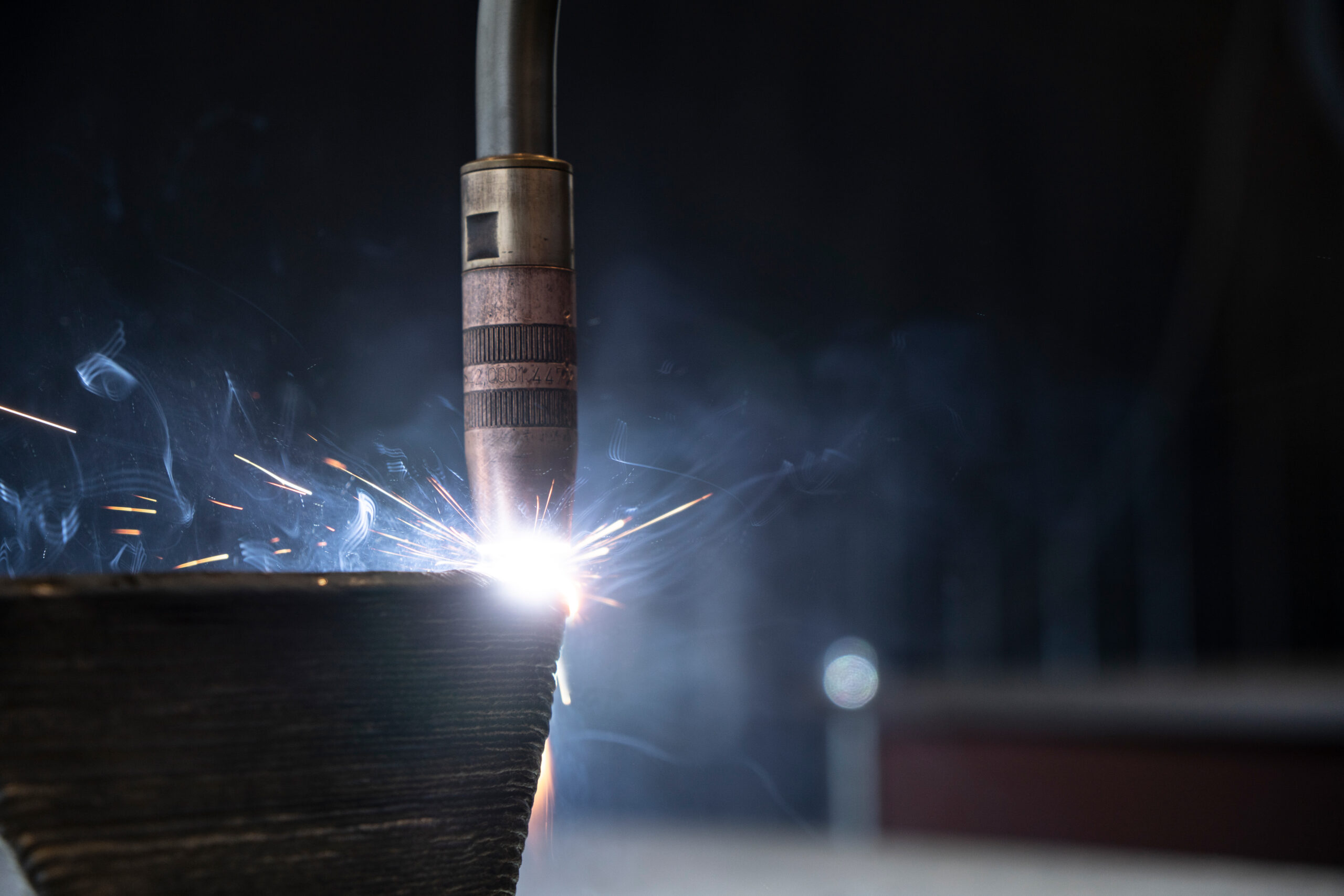

To calculate the correct extra material, engineers must first understand why the raw surface of a wire arc print is uneven. The deposition process involves a welding torch laying down continuous beads of molten metal layer by layer.
As a cylindrical bead of liquid metal solidifies, it forms a rounded edge. When the next layer is deposited directly on top, the two rounded beads stack to create a scalloped profile along the vertical wall of the part. The depth of this scallop, measured from the peak of the bead to the deepest valley between the layers, is known as surface waviness.
The severity of this waviness depends on three main variables:
- Wire diameter and deposition rate
- Layer height and bead width
- Shielding gas composition and material surface tension
A high deposition rate designed to build a large part quickly will typically use a thicker wire and a higher layer height, resulting in very pronounced surface waviness. A fine deposition strategy utilizes a thinner wire and smaller layer heights, resulting in a much tighter surface profile. The machining allowance must always be strictly greater than the maximum depth of the deepest scallop valley.
Key Factors Influencing Allowance Calculations
Beyond simple surface waviness, several advanced metallurgical and thermal factors dictate how much extra material must be programmed into the digital model.
Thermal Distortion and Shrinkage
When liquid metal cools to room temperature, it contracts. In multi meter parts, this thermal shrinkage can compound across thousands of layers, causing the overall geometry to pull inward or warp slightly. If the engineering team does not account for this global distortion, the final part may bow out of the target tolerance zone. Engineers must add a generous allowance to areas prone to severe warping, ensuring the CNC tool still has enough material to cut a perfectly straight line despite the underlying curvature of the raw print.
Surface Oxidation and Alpha Case
Certain high performance alloys react with oxygen at elevated temperatures. Titanium, for example, forms a brittle, oxygen enriched layer on its surface known as alpha case when exposed to atmospheric conditions during cooling. This brittle layer possesses terrible mechanical properties and must be completely removed. For titanium prints, the machining allowance must be thick enough to guarantee the total eradication of this contaminated surface zone, reaching down into the pure, ductile base metal beneath.
Corner Radii and Tool Access
Internal corners present a unique challenge. A robotic welding torch requires a specific minimum turning radius and cannot deposit perfectly sharp internal right angles. CNC cutting tools also possess specific radii. The digital allowance must account for the physical size of the welding torch nozzle, ensuring the robot can actually access the area to deposit the extra material, while also ensuring the CNC spindle can reach into the pocket later to remove it.
Allowance Comparison: Materials and Processes
Different metals behave differently under the intense heat of an electric arc. Some flow smoothly and create flat beads, while others stack steeply. The following table provides a comparative framework for typical allowances based on various WAAM materials and component complexity.
| Material Type | Flow Characteristics | Thermal Distortion Risk | Recommended Minimum Skin Allowance |
| Carbon Steel | Highly fluid, smooth stacking | Moderate | 2 to 4 millimeters |
| Stainless Steel | Viscous, pronounced scalloping | High | 3 to 5 millimeters |
| Super Duplex Stainless | Very viscous, steep beads | High | 4 to 6 millimeters |
| Aluminum Alloys | Highly fluid, wide flat beads | Very High | 3 to 5 millimeters |
| Titanium Alloys | Clean stacking in shielding gas | Moderate | 4 to 6 millimeters to clear alpha case |
It is important to compare the near net shape capabilities of wire arc additive manufacturing against traditional heavy industry methods.
| Manufacturing Method | Typical Raw Tolerance | Typical Machining Allowance Required | Lead Time |
| Wire Arc Additive Manufacturing | Plus or minus 1 to 2 millimeters | 2 to 6 millimeters | Days to weeks |
| Sand Casting | Plus or minus 3 to 5 millimeters | 5 to 15 millimeters | Months |
| Open Die Forging | Plus or minus 10 to 20 millimeters | 10 to 30 millimeters | Months |
This comparison highlights why wire based 3D printing is so highly disruptive. While it does require post processing, the sheer volume of sacrificial material that must be cut away is drastically lower than that of open die forging or heavy sand casting.
Strategies for Fixturing Large Irregular Geometries
Before a near net shape part can be machined, it must be rigidly clamped to the CNC bed. This presents a massive logistical challenge. Unlike a perfectly square block of raw billet steel, a near net shape print features wavy, organic, and irregular surfaces. Standard CNC vises cannot grip these wavy walls securely.
To solve this, manufacturing engineers employ several specialized fixturing strategies:
- Printing Sacrificial Clamping Tabs: During the digital design phase, engineers can artificially add square blocks or heavy tabs to the exterior base of the model. The robot prints these tabs specifically so the CNC clamps have a flat, square surface to grip. Once the critical features are machined, these tabs are cut off and recycled.
- Using the Original Substrate Plate: The most common strategy is to leave the printed part firmly attached to its original steel base plate. The base plate is perfectly flat and easily secured to the CNC table. The machine mills the entire upper geometry, and then a band saw or wire electrical discharge machine slices the finished part away from the base plate.
- Dedicated Support Jigs: For highly complex aerospace or maritime components, engineers may print a custom, conformal support jig out of a cheaper material like polymer or carbon steel, designed specifically to cradle the irregular metal print during the final machining phase.
Mitigating Tool Chatter and CNC Wear
Machining a wavy metal surface is exceptionally harsh on cutting tools. Because the surface is composed of peaks and valleys, the spinning cutting tool constantly engages and disengages with the metal. This phenomenon is known as an interrupted cut.
Interrupted cuts create violent vibrations, known as tool chatter, which can shatter brittle carbide inserts and damage the CNC spindle bearings. Furthermore, the rapid heating and cooling cycles inherent to the printing process can cause localized hardening in the weld beads, creating hard spots that instantly dull standard tooling.
To mitigate these issues, machinists must utilize specific strategies. First, they deploy specialized milling cutters with highly tough, impact resistant carbide grades rather than standard high hardness grades. Second, the initial roughing pass must be programmed to plunge deeply enough to cut continuously through the solid metal beneath the valleys, rather than skipping along the peaks of the scallops. Generous flood coolant is also mandatory to clear metal chips and manage the heat generated by cutting tough alloys like super duplex or Inconel.
Leveraging MetalXL Software for Allowance Optimization

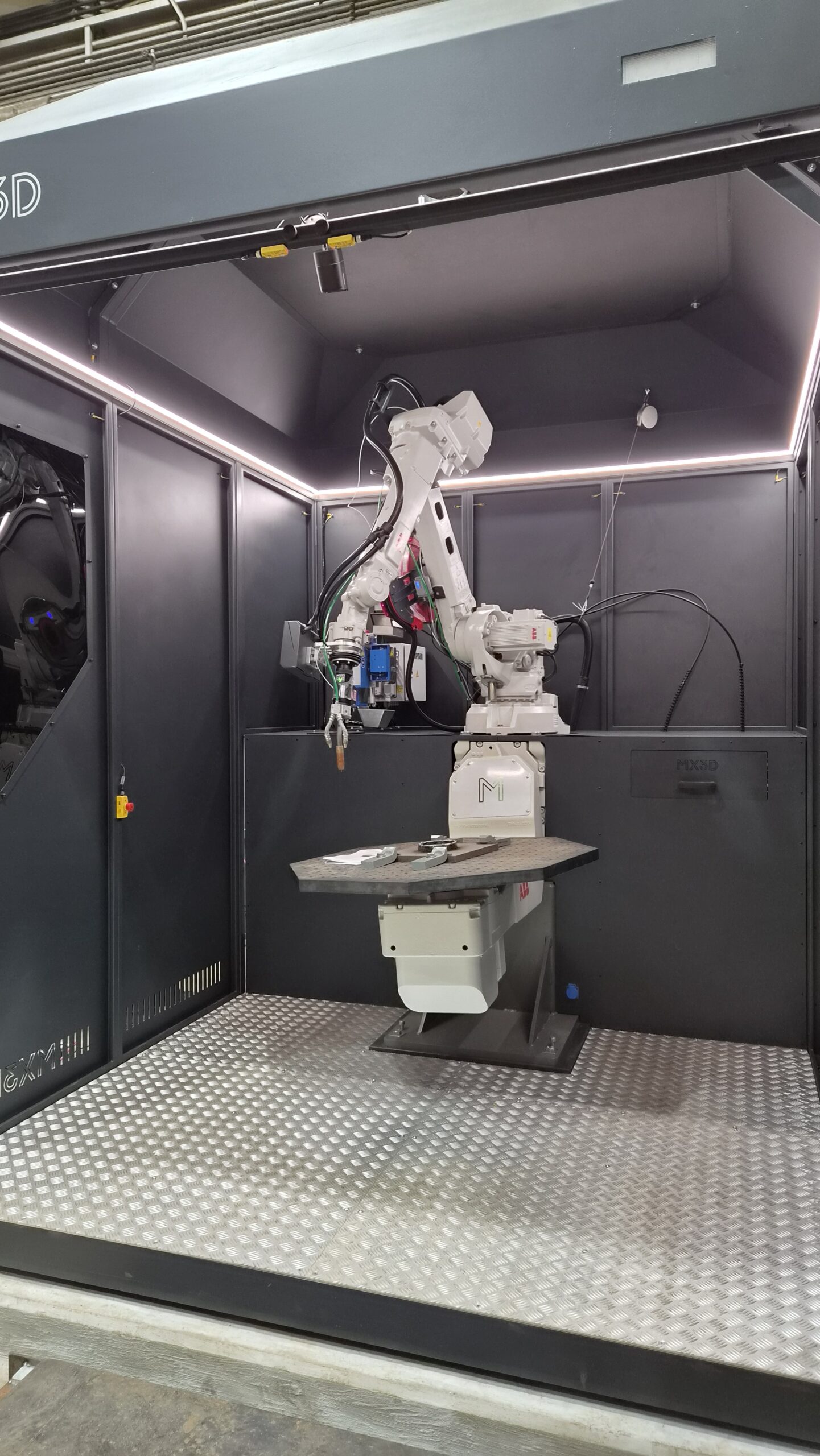

The transition from the robotic printing cell to the subtractive CNC machine is historically the most error prone phase of the manufacturing workflow. MX3D completely streamlines this transition through the MetalXL software suite.
The MetalXL CAM module allows engineers to easily offset the final target geometry, mathematically generating the precise sacrificial skin required for the specific material being used. The software automatically calculates the ideal path planning to build this oversized geometry with maximum efficiency, avoiding unnecessary material waste.
Furthermore, once the part is physically printed, standard industry practice involves using a 3D laser scanner to capture the physical reality of the warped, wavy part. The MetalXL workflow allows engineers to take this scan data and perfectly align it with the digital twin using advanced best fit algorithms. This digital alignment ensures that when the CAM programmer generates the CNC cutting paths, they know exactly where the physical metal sits in real space, eliminating the risk of the cutting tool hitting empty air or plunging dangerously deep into an unexpected peak.
FAQ
What does near net shape mean in metal printing?
Near net shape means the manufacturing process produces a component that is very close to its final physical dimensions, but requires a secondary subtractive machining step to achieve final precise tolerances and smooth surface finishes.
Why can we not print metal parts perfectly smooth?
Wire arc additive manufacturing relies on stacking beads of molten welding wire. Physics dictates that liquid metal forms rounded cylindrical shapes due to surface tension. When these rounded beads stack layer by layer, they inevitably create a slightly ribbed or scalloped surface texture.
How much extra material should be added for machining?
The exact amount depends heavily on the chosen material, the selected deposition rate, and the global size of the part. Generally, a minimum allowance of 3 to 6 millimeters is recommended to ensure all surface valleys and potential thermal distortions are safely cleared during milling.
How do you hold a wavy printed part in a CNC machine?
Engineers typically leave the printed part attached to its flat, original starting base plate, which is easily clamped to the machine bed. Alternatively, square sacrificial clamping tabs can be intentionally printed directly onto the sides of the part for standard vises to grip.
Does printing extra material ruin the cost savings of additive manufacturing?
No. While some material is sacrificed, wire arc additive manufacturing still requires significantly less sacrificial allowance than traditional heavy sand casting or open die forging. The savings in raw material and total lead time vastly outweigh the cost of milling a few millimeters of extra skin.
