In heavy industrial applications such as energy, maritime, defense, and aerospace, the structural integrity of manufactured components is non negotiable. Wire Arc Additive Manufacturing has emerged as a premier solution for fabricating multi meter components, but bringing these large scale parts into service requires definitive proof of quality. Volumetric defects, surface cracking, and internal anomalies can compromise a component under high stress conditions.
Non-destructive testing represents the primary pathway to qualify these parts, ensuring compliance with international manufacturing codes without altering or damaging the physical component. This guide examines the unique challenges of testing wire based metal prints, evaluates the core testing methodologies, and establishes a framework for executing rigorous inspection workflows.
The Challenge of Inspecting Raw WAAM Geometries
Inspecting components produced via robotic wire arc deposition introduces metallurgical and geometric variables that are absent in traditional casting, forging, or subtractive manufacturing. Understanding these challenges is essential for selecting the correct inspection strategy.
Surface Topology and Waviness
The raw, as printed surface of a wire arc component consists of overlapping weld beads. This characteristic surface waviness creates a major obstacle for standard contact testing methods. Ultrasonic transducers, for instance, require a flat surface to maintain proper acoustic coupling. Rough surfaces scatter acoustic energy and distort signals, which can cause false positives or completely mask deep internal defects.
Anisotropic Grain Structures
The layer by layer thermal cycle of deposition creates a highly complex microstructure. As subsequent layers are melted onto previous tracks, the metal undergoes directional solidification, leading to large, anisotropic, columnar dendritic grains. In stainless steel, duplex steel, and nickel alloys, these large grains cause high acoustic attenuation. When sound waves travel through the material, they are scattered at grain boundaries, a phenomenon known as Rayleigh scattering. This drastically reduces the signal to noise ratio during ultrasonic testing.
Defect Classifications Unique to Wire Fed Systems

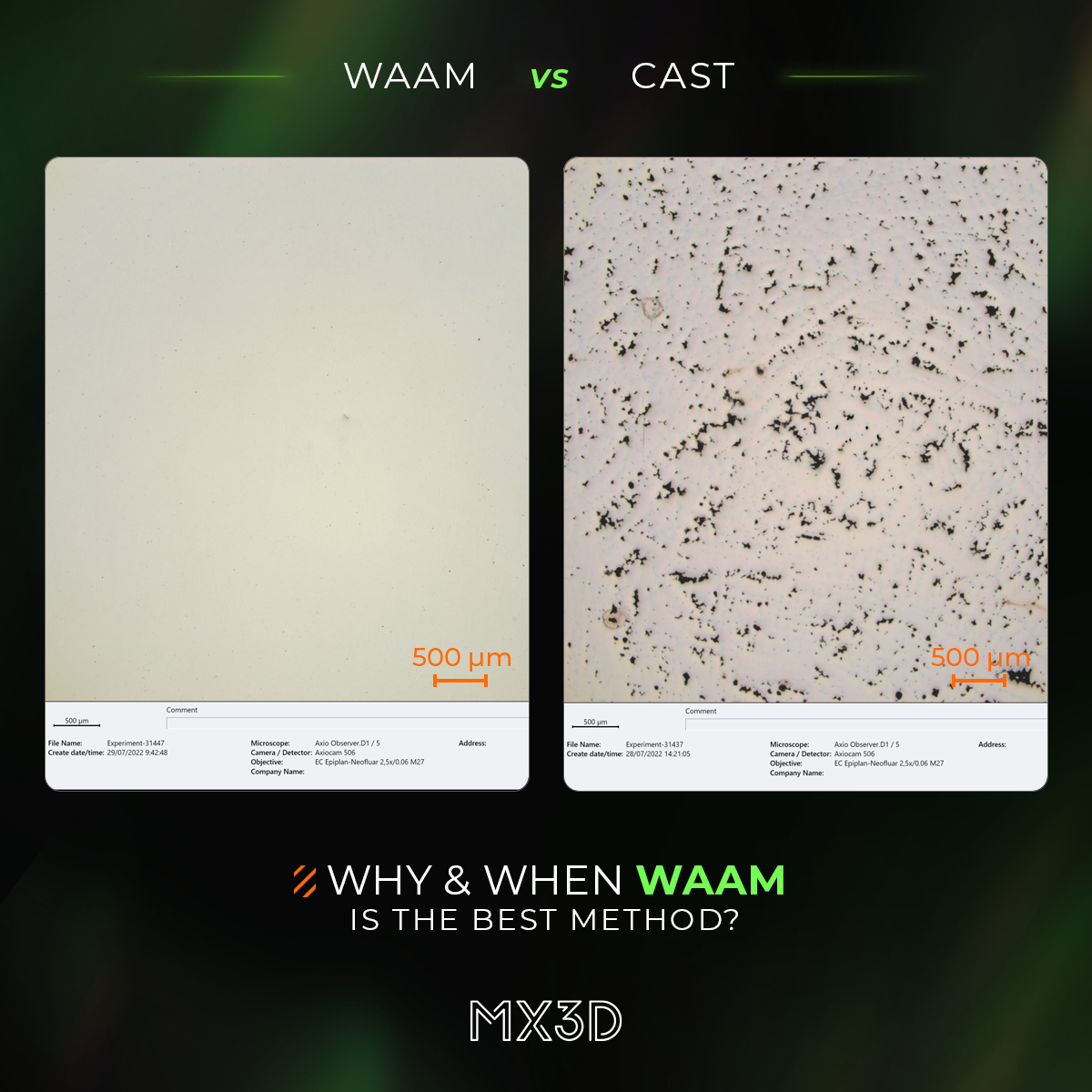

Technicians must inspect for specific defect profiles that differ from powder bed processes. Volumetric defects include spherical gas porosity from contaminated shielding gas, interlacing lack of fusion between adjacent beads, and interpass cracking caused by excessive thermal accumulation. Linear defects such as solidification cracking or delamination along layer boundaries can also occur if process parameters deviate.
Primary NDT Methods for Large Scale Metal 3D Printing
A robust qualification strategy typically leverages a combination of complementary non destructive testing methods. Each process offers specific capabilities depending on whether the part is in its raw, as printed state or has undergone final machining.
Visual Testing
Visual testing serves as the initial line of defense and occurs both during the automated printing process and after completion. Technicians look for obvious surface breaking defects such as undercuts, visible interpass cracking, surface porosity, and severe geometric distortion. Modern automated systems often integrate optical sensors or high resolution cameras to perform in line visual testing, capturing geometric variances before the next layer is deposited.
Phased Array Ultrasonic Testing
Phased array ultrasonic testing represents the gold standard for identifying internal, volumetric defects within heavy section components. Unlike conventional single element transducers, phased array systems utilize an array of multiple small elements. By electronically varying the timing of the pulses, engineers can steer, focus, and sweep the acoustic beam through the material without physically moving the probe.
This multi angle scanning capability allows the acoustic energy to navigate around the coarse, columnar grain structures of the weld metal, minimizing scattering and providing a clear cross sectional view of internal lack of fusion or deep porosity.
Radiographic Testing
Radiographic testing utilizes X rays or Gamma rays to penetrate the component, projecting an image of the internal structure onto a digital detector or film. Because radiography relies on density differentials, it is exceptionally accurate at identifying volumetric voids, spherical gas porosity, and foreign inclusions.
The primary limitation of radiography in large scale additive manufacturing is part geometry. For highly complex or enclosed multi axis geometries, positioning the radiation source and the film correctly can be physically impossible. Additionally, the massive wall thicknesses common to heavy industrial components require high energy sources, which increases safety overhead.
Liquid Penetrant and Magnetic Particle Testing
These surface inspection methods are highly effective but generally require the component to be prepped or machined. Liquid penetrant testing involves applying a fluid to the surface, allowing it to draw into cracks via capillary action, and applying a developer to reveal the flaws.
Magnetic particle testing induces a magnetic field in ferromagnetic materials, such as carbon steels and duplex stainless steels, and uses iron particles to highlight magnetic flux leakage caused by surface breaking cracks. Both methods are invaluable for verifying the integrity of critical weld toes and final machined faces.
Eddy Current Testing
Eddy current testing uses electromagnetic induction to detect surface and near surface defects in conductive metals. A coil carrying alternating current creates a localized magnetic field in the part, generating eddy currents. Discontinuities like cracks or voids interrupt the flow of these currents, altering the electrical impedance of the coil. Eddy current testing is highly sensitive and possesses a distinct advantage: it can inspect components through thin layers of paint or non conductive protective coatings, eliminating the need for aggressive chemical cleaning.
Comprehensive NDT Method Comparison
Selecting the ideal testing regimen requires balancing capability against material state, cost, and physical accessibility. The following table provides a direct engineering comparison of the primary options.
| Testing Method | Target Defect Zone | Optimal Material State | Material Compatibility | Primary Advantage | Primary Limitation |
| Visual Testing | Surface only | As printed and machined | All conductive and non conductive metals | Low cost and executable in real time during print | Cannot detect subsurface or internal defects |
| Phased Array Ultrasonic | Volumetric and internal | Machined or prepped surfaces | Carbon steel, titanium, stainless steel | High sensitivity to planar lack of fusion defects | Suffers from high attenuation in coarse grain structures |
| Radiographic Testing | Volumetric and internal | As printed and machined | Most structural alloys | Excellent for identifying spherical gas porosity | High safety overhead and geometric access restrictions |
| Liquid Penetrant | Surface breaking only | Machined faces only | Non porous metals including aluminum and bronze | Simple execution with highly readable visual results | Requires complete removal of raw weld surface waviness |
| Magnetic Particle | Surface and near surface | Machined or lightly prepped | Ferromagnetic materials like carbon steels | Detects tight cracks filled with contaminants | Restricted strictly to ferromagnetic metals |
| Eddy Current Testing | Surface and near surface | Lightly prepped surfaces | All electrically conductive metals | Can scan through thin coatings and paint layers | Depth of penetration is limited to a few millimeters |
We are always on the lookout for new methods and development for WAAM technologies, explore our findings on our R&D page.
Standard NDT Workflows: Raw Print vs Fully Machined Components
Because surface condition dictates the effectiveness of specific non destructive methodologies, industrial qualification sequences are divided into separate phases based on the manufacturing step.
Phase One: Inspection of the As Printed Component
Testing begins immediately after the robotic arm finishes deposition and the part cools to ambient temperature. The goal is to catch massive macro defects before investing time and capital into post processing and machining.
- Post Print Visual Inspection: The entire geometry is scanned visually or with structured light systems to verify dimensional compliance and check for visible surface defects.
- High Energy Radiography: If the geometric profile allows, radiography is performed on the raw print to evaluate internal density and locate significant zones of porosity or gross lack of fusion.
- Targeted Raw Surface Eddy Current Testing: Technicians utilize specialized flexible probes that can conform to the weld bead waviness, scanning critical areas prone to thermal stress cracking.
Phase Two: Inspection of the Machined Component
Once the component undergoes post processing, such as stress relieving heat treatments and subtractive CNC milling, the surface becomes smooth. This opens up the full suite of high resolution NDT options.
- Surface Prep Surface Inspection: Liquid penetrant or magnetic particle testing is applied across the entire machined surface, with particular focus on transition zones where the printed metal meets any traditional forged or cast base plates.
- Phased Array Ultrasonic Testing Scan: The smooth machined surface allows for optimal acoustic coupling. Technicians conduct full volumetric scans using specialized wedges tailored to the material type to map the internal structure with millimeter precision.
- Final Qualification and Hardness Mapping: Critical structural zones undergo non destructive hardness testing to verify that post print heat treatments successfully achieved the targeted mechanical properties.
Find out more about us applying these phases for our projects by exploring the applications page.
International Standards and Compliance for WAAM Inspection
To deploy printed components into regulated sectors, manufacturers must adhere to frameworks established by international standards organizations and classification societies. These bodies have updated traditional welding and casting codes to encompass additive processes.
DNV RP A203 and DNV OS B101
DNV stands as a primary authority for qualifying additive parts in maritime and offshore energy applications. The recommended practice DNV RP A203 provides clear guidelines for qualifying equipment produced by additive manufacturing. It outlines rigorous testing regimes, including specific requirements for non destructive testing tracking, establishing that components must achieve a quality level equivalent to or greater than traditional forged or cast equivalents.
ASME Boiler and Pressure Vessel Code
For pressure equipment, valves, and manifolds, parts must comply with the ASME Boiler and Pressure Vessel Code, specifically Section V for Non Destructive Examination and Section IX for Welding and Brazing Qualifications. When qualifying a wire arc process, the manufacturer must demonstrate that the NDT techniques deployed can reliably resolve flaws down to the minimum allowable defect sizes specified by the design code.
Additional Critical Governing Standards
- ISO 17640: Non destructive testing of welds using ultrasonic techniques.
- ASTM E3029: Standard practice for validating the tracking and performance of computed tomography systems.
- AWS D20.1: Specification for fabrication of metal components using additive manufacturing, published by the American Welding Society.
- NACE MR0175: Ensuring that structural materials exposed to sour service environments undergo specialized inspection to prevent sulfide stress cracking.
The qualification path requires a complete Procedure Qualification Record backed by extensive Non Destructive Testing data, ensuring that the robotic cell maintains repeatable quality across multi day production runs. Find out more about our certification and high standards.
Leveraging MetalXL Software for Digital Traceability and Inspection
The true differentiator in modern robotic wire arc printing is how software can optimize and streamline the non destructive testing process. Traditional manufacturing relies on blind post print inspection, meaning technicians must scan an entire multi meter part to find a potential flaw. MX3D’s MetalXL software suite fundamentally changes this equation by integrating advanced digital traceability.
During the printing process, the MetalXL Live module continuously monitors and logs critical process data directly from the robotic welding torch. Parameters such as interpass temperature, wire feed speed, current, voltage, and torch position are recorded in real time. If a thermal spike occurs, or if the interpass cooling time deviates from the approved procedure, the software logs the precise spatial coordinates of the anomaly.
When the part enters the inspection phase, the MetalXL Viz module generates a high resolution digital twin of the build, mapping the logged sensor data directly onto the 3D model geometry. This provides NDT technicians with a map of exactly where process variations occurred. Instead of conducting an exhaustive, time consuming volumetric scan of a six meter structure, inspection teams can perform highly targeted phased array ultrasonic testing or radiography on the exact zones marked by the software. This data driven approach dramatically reduces testing overhead, accelerates industrial certification, and provides asset owners with an unalterable record of internal quality.
Ready to use WAAM for Your Applications and Projects?
FAQ
What is non destructive testing for wire arc additive manufacturing?
Non destructive testing refers to a group of analysis techniques used to evaluate the structural integrity, internal quality, and mechanical soundness of printed metal parts without causing any physical damage to the component.
Why is ultrasonic testing difficult on raw printed components?
The characteristic surface waviness of overlapping weld beads scatters the acoustic signal and prevents standard contact probes from maintaining uniform coupling. Additionally, the coarse, anisotropic grain structure of the metal causes high acoustic attenuation.
Can you inspect wire arc parts while they are being printed?
Yes. In line inspection can be executed using visual sensors, laser profilometers, and thermal cameras integrated into the robotic cell. These tools monitor geometric conformity and temperature profiles layer by layer, allowing the system or operator to address defects immediately.
Which NDT method is best for detecting lack of fusion in metal prints?
Phased array ultrasonic testing is highly effective for detecting internal, planar lack of fusion defects because the acoustic beam can be electronically steered and focused at multiple angles to intercept the flat defect boundaries.
How does digital process logging reduce non destructive testing costs?
Software platforms like MetalXL track and log exact manufacturing parameters in real time. By mapping process deviations onto a digital twin, technicians can skip scanning defect free sections and focus high resolution testing exclusively on targeted areas. Explore our technology.
